Here's a strange fact. The power coming out of your battery can't run your fridge.
An off grid inverter is the box that fixes that. It turns battery power into the kind your wall sockets use, with no grid behind it. Below you'll find which type to pick, how big it should be, and when a stackable inverter makes sense.
What Is An Off Grid Inverter?
An off grid inverter changes the DC power stored in your battery into AC power for your house, and it builds that AC all by itself, without a power grid to copy.
Your battery and your fridge use different kinds of electricity. The battery makes DC, which flows one way. Your fridge wants AC, alternating current, which flips direction back and forth many times a second. It's like one speaks English and the other speaks Japanese.
So the inverter is a translator box. It switches the battery's power back and forth very fast, and your TV never knows the energy started life in a battery.
Off Grid Inverters vs Grid-Tied Solar Inverters
A normal grid-tied solar inverter is a copycat. It listens to the grid's rhythm and matches it, so when the grid goes dark, it has nothing to copy.
Scientists call the copycat kind "grid-following". An off grid inverter has to be "grid-forming". That's a fancy way of saying it makes the rhythm itself, like the drummer in a band instead of someone clapping along.
That's why choosing one is a bigger decision than it looks. In an off grid solar system there is no grid to lean on. The inverter is the grid.
String, Micro Or Hybrid Inverters: Which To Choose?
There are a few options, and the right one depends on your system design.
String inverters are the basic kind, with all your solar panels feeding one box. They cost less, but if one panel is shaded, the whole string slows down, like a school bus going at the speed of the slowest kid.
Microinverters flip that around. Every module gets its own tiny inverter, so one shady spot doesn't drag down the rest. Better performance in shade, but a higher price and more parts.
Hybrid inverters are what many off-grid homes use. One hybrid box handles solar, battery storage and the grid (if you're still connected). Many can switch to battery power when the grid goes down, but check two things first:
- It needs a backup output (often called EPS). Only what is wired to it keeps running. Victron's energy storage system manual says loads on that output run from the battery during a power failure.
- Grid rules say it must disconnect from the grid when the grid fails, so it never sends power into lines that workers think are dead. That's called anti-islanding, and a qualified installer has to set it up.

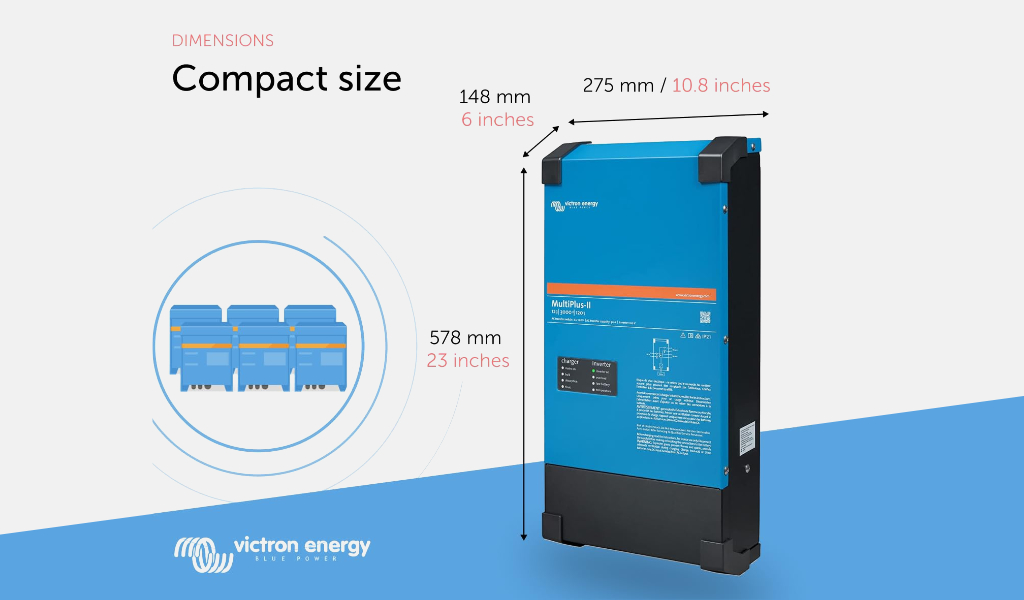

Inverter/chargers are close cousins. A box like the Victron MultiPlus-II is an inverter and a battery charger in one. When a generator runs, it passes that power to your house and charges the battery. When the generator stops, it takes over in under 20 milliseconds, so fast that a computer keeps running.
How Big An Off Grid Inverter Do You Need?
Too small and the fridge won't run. Too big and you waste money.
The trick is to think about what runs at the same time in your household. Say the fridge (500 W), the TV (200 W), a few lights (100 W) and a laptop (50 W) might all be on at once. That's about 850 W.
Now add 25% on top. Inverters lose some capacity when warm, and you want room to spare. That gets you to about 1,100 W.
There's one more check. A fridge motor pulls a short burst of extra power when it kicks on, several times its normal draw. So the peak rating has to cover that burst too.
Your battery voltage is part of the requirements as well. Victron's wiring guide suggests 12 V for inverters up to about 3,000 VA, 24 V up to about 5,000 VA, and 48 V for anything bigger, because big inverters on low voltage need very thick cables.
→ Calculate your inverter size
→ Use the cable calculator to size your wiring
Pure Or Modified Sine Wave Inverters?
Pure sine wave. Modified sine wave is cheaper, but it makes motors run hotter and can upset some electronics.
Pure sine wave makes smooth, high quality power, the same shape your appliances get from the grid. It costs more, and it's worth it.
Modified sine wave looks more like stairs than a smooth wave. A kettle doesn't mind. But motors and microwaves get hotter, clocks may not keep time, and some printers may not work properly.
Saving a little money isn't worth cooking your fridge motor.
What Is A Stackable Inverter?
A stackable inverter is one you can join with more of the same model, so they work together like one bigger box.
It's like Lego bricks. Begin with one, and when your household needs more power, click another one on. Victron says up to six MultiPlus-II units can run in parallel. Three of the same model can also make three-phase power, the kind big workshop machines use.
So if your home might grow, a stackable model lets the system grow with it.
Efficiency And Smart Features To Consider
A little energy turns into heat on every trip through the box. For the MultiPlus-II range, Victron gives a maximum efficiency of 93% to 96%, depending on the model. Higher efficiency means more of your stored energy reaches your sockets.
Here's a sneaky one: an inverter uses power even when nothing is plugged in. The smallest MultiPlus-II models draw about 13 W just sitting there. That's around 312 Wh a day, a real chunk of a small battery. A "search mode" that sleeps until something switches on can reduce that to a few watts.
Other features worth a look:
- Compatibility with your battery voltage, battery type and the rest of your power system.
- A built-in charger with generator support for cloudy weeks.
- Remote monitoring on your phone, so you can see what the whole system is doing from anywhere.
→ Read more about charge controllers
Are Solar Inverters Waterproof?
Most are not. Victron says the MultiPlus-II must be installed in a dry and well-ventilated area, as close as possible to the batteries.
Some models are built for outdoors, so check the label first.
How Do You Switch An Inverter Off?
Use its own on/off switch or remote panel, then follow the manual for the rest.
Many inverter/chargers have three switch spots: on, off and "charger only". But off doesn't mean safe to touch. The battery is still connected, so dangerous voltage can still be at the terminals. Before any work, turn off the AC power and disconnect the battery.
Why The Inverter Is The Heart Of An Off Grid Solar System
Without it, your solar power and your battery have nowhere to send their energy. It's the bridge between everything that makes electricity and everything that uses it.
It also works harder than anything else in the system, so it wears out first. A typical string inverter lasts about 10 to 15 years. If your system acts weird, check the inverter first, and when it's time for a new one, pick a reliable model you can get help with.
→ Read more about home batteries
Sources
- US Department of Energy, Solar integration: inverters and grid services basics
- Victron Energy, MultiPlus-II inverter/charger datasheet
- Victron Energy, MultiPlus-II manual
- Victron Energy, ESS design and installation manual
- Victron Energy, Wiring Unlimited
- Samlex America, Pure sine wave vs modified sine wave inverters
- pv magazine USA, How long do residential solar inverters last?
Hard Words
| Term | What it means |
|---|---|
| Inverter | The box that turns DC from your battery into the AC your wall sockets need. |
| DC and AC | DC flows one way, like from a battery. AC flips direction many times a second, like from a wall socket. |
| Grid-forming | Makes its own AC rhythm, so it can run a house with no grid. |
| Hybrid inverter | Handles solar, batteries and the grid in one box. |
| Inverter/charger | An inverter with a battery charger built in, so a generator can refill the battery. |
| Stackable inverter | One you can join with more of the same model for more power or three-phase power. |
| Surge | A brief spike of power when a motor, like a fridge compressor, kicks on. |
| 25 percent headroom | Extra room on top of your everyday load. 1000 W of load means a 1250 W inverter. |
Common Questions
Why can't I plug my fridge straight into a battery?
Because the battery makes DC power and the fridge wants AC. The inverter is the translator between the two.
Which inverter is best for an off-grid home?
Many off-grid homes pick a hybrid inverter or an inverter/charger, which handles solar and the battery in one box and can often charge from a generator.
Can I add a second inverter later?
Only if it's a stackable model. Then units of the same model can be joined for more power or three-phase power.
Why does the inverter fail before the panels?
Because it works much harder. The panels just sit in the sun, while the inverter switches power back and forth all day and gets warm.
